Indoor Automotive Display Floors Elevate Your Event with Traigo
Showcase your vehicles in style with Traigo’s premium indoor automotive display floors. Our durable and customizable flooring solutions are perfect for:
Car Showrooms
Motorsport Events
Automotive Exhibitions
And more!
At Traigo, we understand the importance of creating outstanding indoor environments for motorsport and automotive events. Our premium indoor automotive display floors offer the perfect blend of style, functionality, and performance to enhance your car showroom, exhibition space, or racing event. Made from top-grade PVC, our flooring features a user-friendly interlocking design for easy installation and removal. This versatile and durable solution ensures a sleek, polished finish while providing safety and comfort for visitors and participants.
TRM (Thermoplastic Resin)
Is TRM suitable for indoor vehicle displays?
Yes. TRM tiles are rigid, load-bearing, and resistant to chemical spills—ideal for car show flooring, press launches, or showroom setups. They’re reusable and made for quick installation over concrete or resin bases.
Can TRM flooring be reused across events?
Absolutely. This material is designed for repeated setups with minimal wear, offering sustainability and excellent ROI for brands with ongoing activations.
EVC (Engineered Vinyl Composite)
What patterns or colours are available in EVC tiles?
EVC interlock tiles come in wood, concrete, metallic, and stone visuals, and can be laser-cut for logos and creative layouts. Think bespoke vehicle zones, display islands, or runway-style showcases.
Is EVC scratch-proof and safe for high traffic?
Yes. It’s scratch-resistant, low VOC, and ideal for exhibition flooring where durability and design aesthetic matter equally.
PCP (Propylene Copolymer)
Is PCP suitable for heavy rolling loads?
Yes. PCP tiles are strong yet lightweight—handling moving vehicle displays and crew carts while being fast to install.
Can I reconfigure PCP tile layouts for different events?
Yes. The modular click-fit design makes it easy to reconfigure floor plans or swap out worn tiles.
ECP (Elastomer Cross-linked Polymer)
Why choose ECP for backstage or pit zones?
ECP tiles are anti-fatigue, shock-absorbent, and offer grip underfoot, making them perfect for pit crews, technical teams, and loading bays.
Can ECP help reduce staff fatigue?
Yes. Its ergonomic design eases long standing hours during long-haul shows or high-traffic demo areas.
TFT / TFR (Textile Flooring Formats – Tiles & Rolls)
Is textile flooring appropriate for car shows?
Definitely. TFT and TFR formats add polish to VIP zones, press lounges, and photo backdrops. They soften acoustics and create a premium atmosphere.
Can I customise carpet colours or add branding?
Yes. Our TFT/TFR solutions support custom colours, laser-cut logos, and printed graphics for full brand immersion.
TRM – Thermoplastic Resin Interlocking Panels
Versatile Flooring for Car Displays & Modular Event Stands
TRM flooring is designed for heavy-duty indoor car shows, offering a strong foundation for vehicle-ready flooring, press platforms, and modular auto stands. Its interlocking tile format makes it ideal for repeat use at fast-paced events where quick setup and clean visuals matter.
- 🚗 Supports static vehicle load
- 🧱 Flexible modular tile layout
- 🧼 Easy to clean and maintain
- 🔄 Reusable across events, reducing waste
Perfect for: display decks, brand reveal stages, reusable exhibition kits

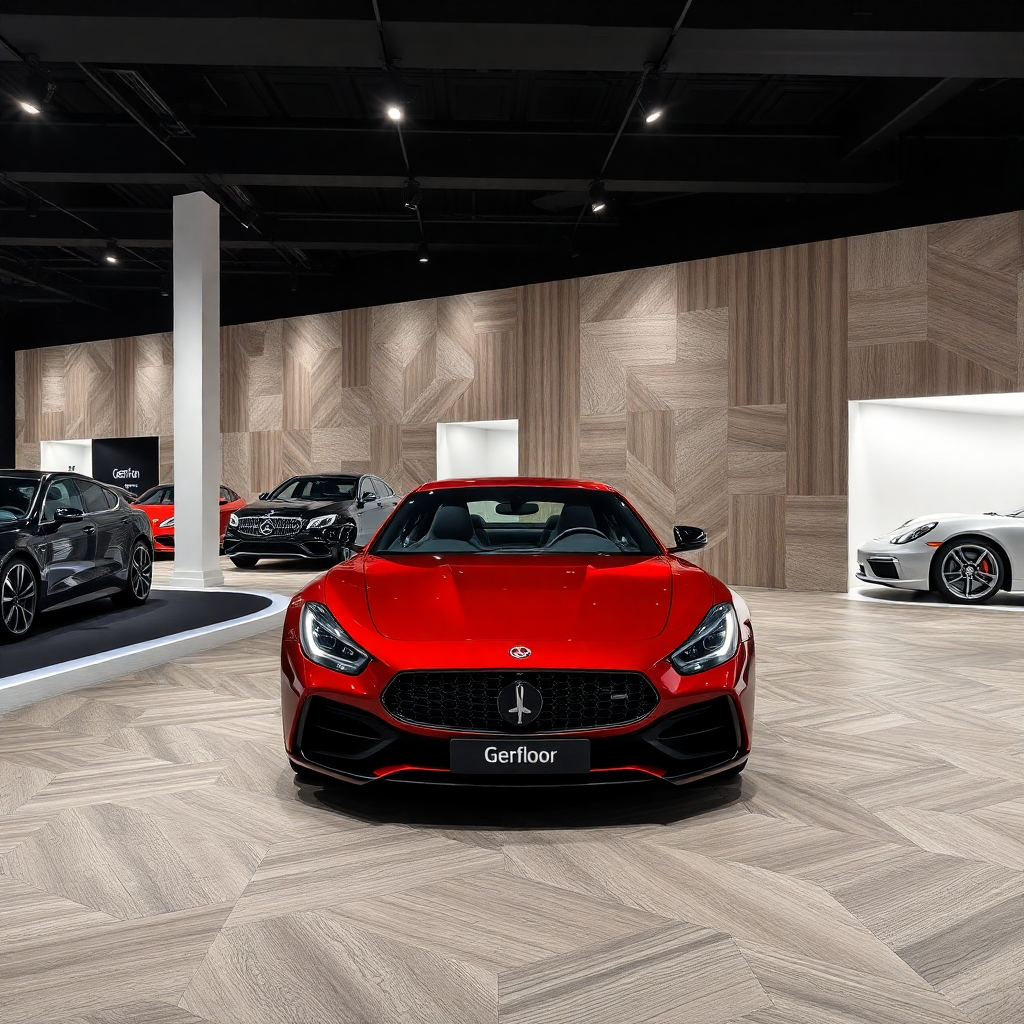

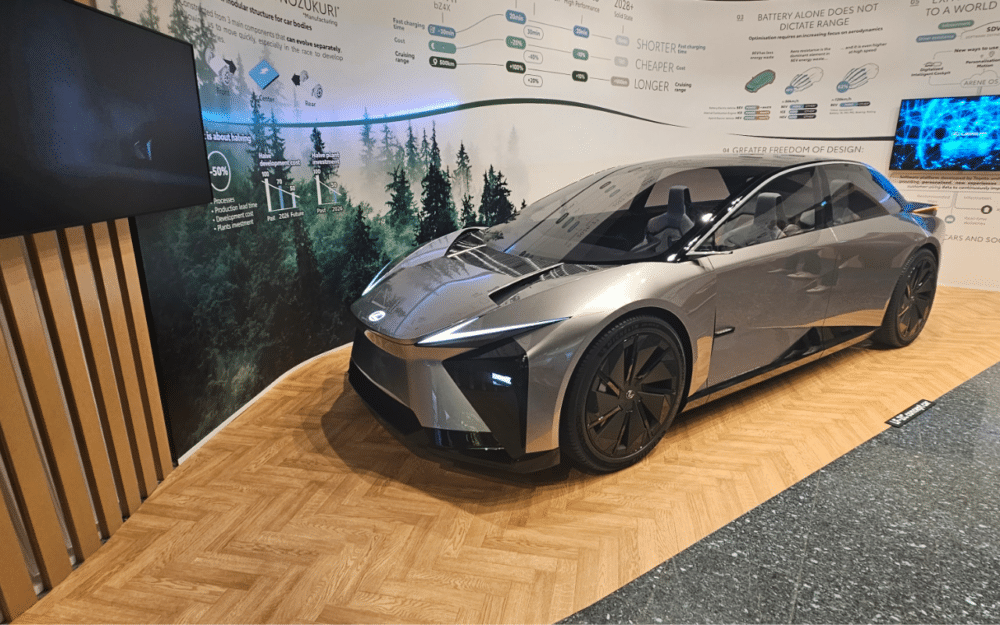

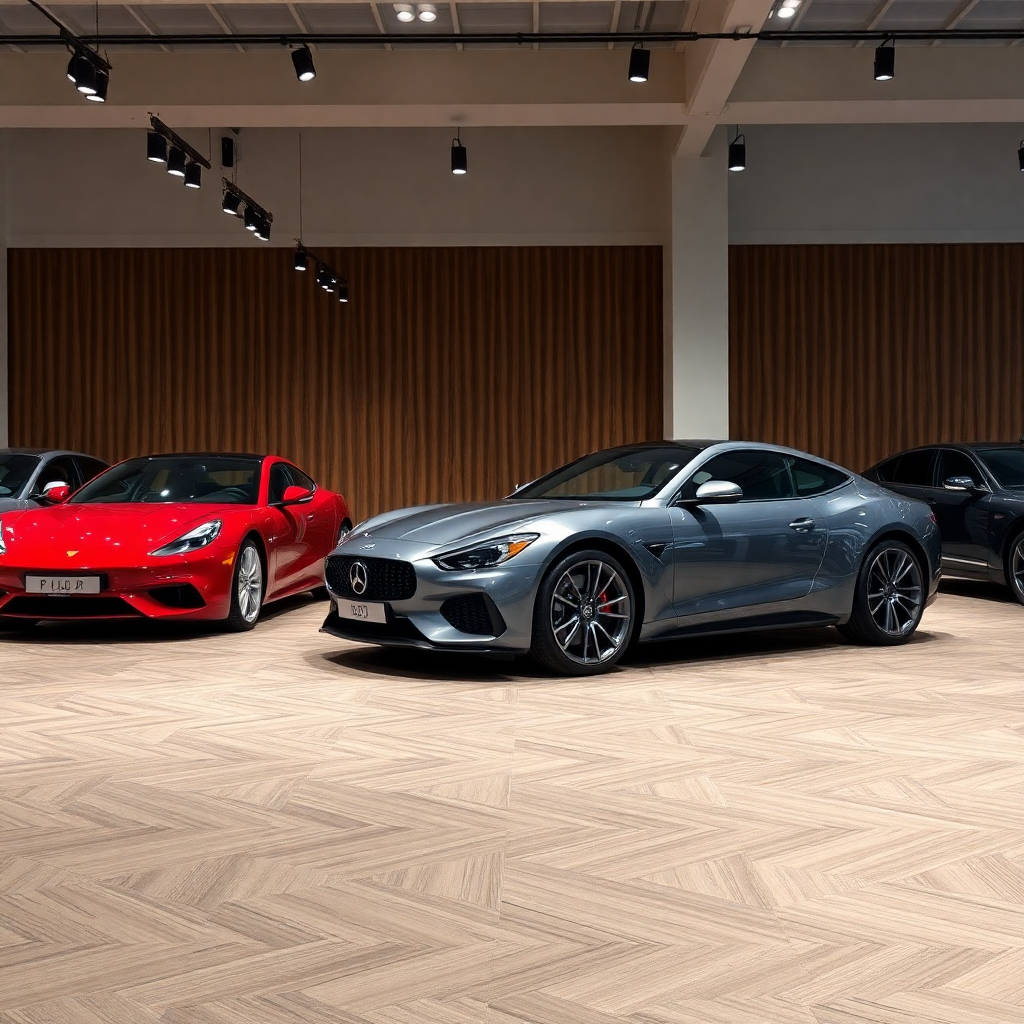

EVC – Engineered Vinyl Composite Interlock Tiles
Stylish & Functional Zones for High-End Automotive Showcases

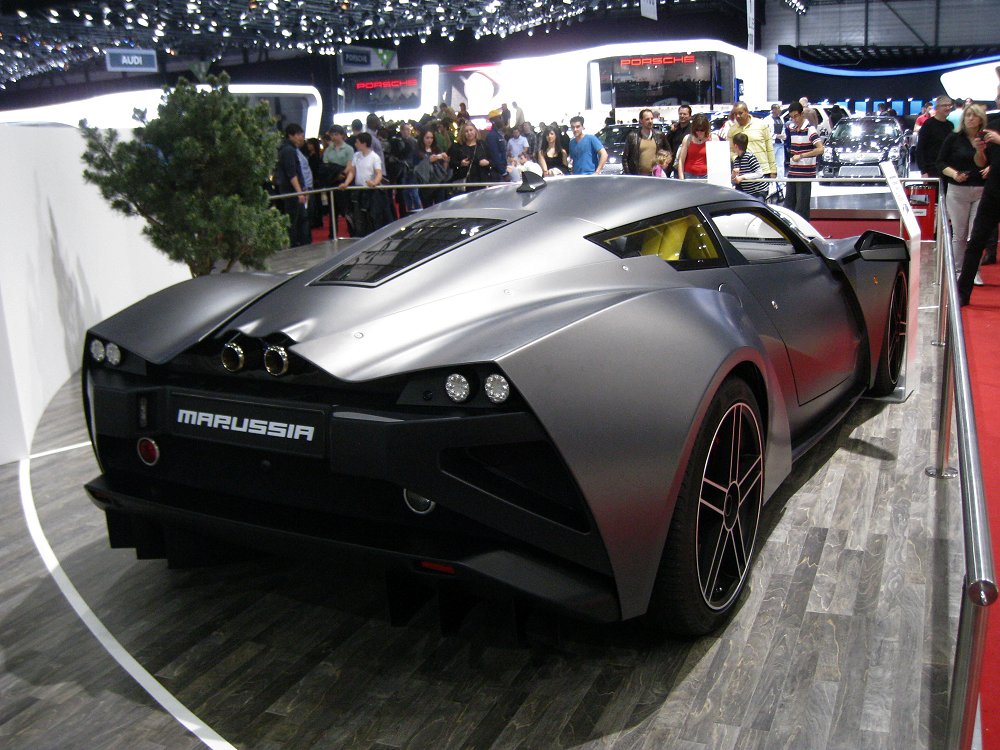

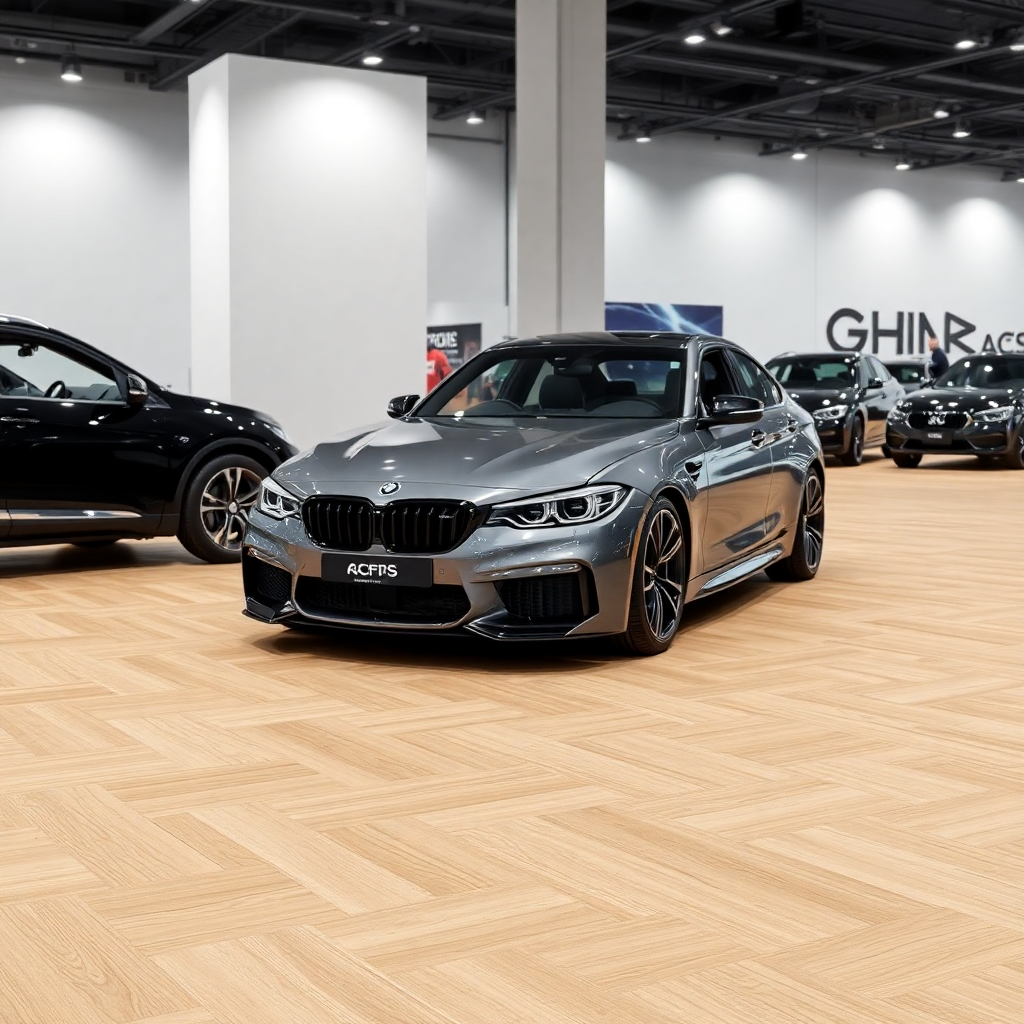

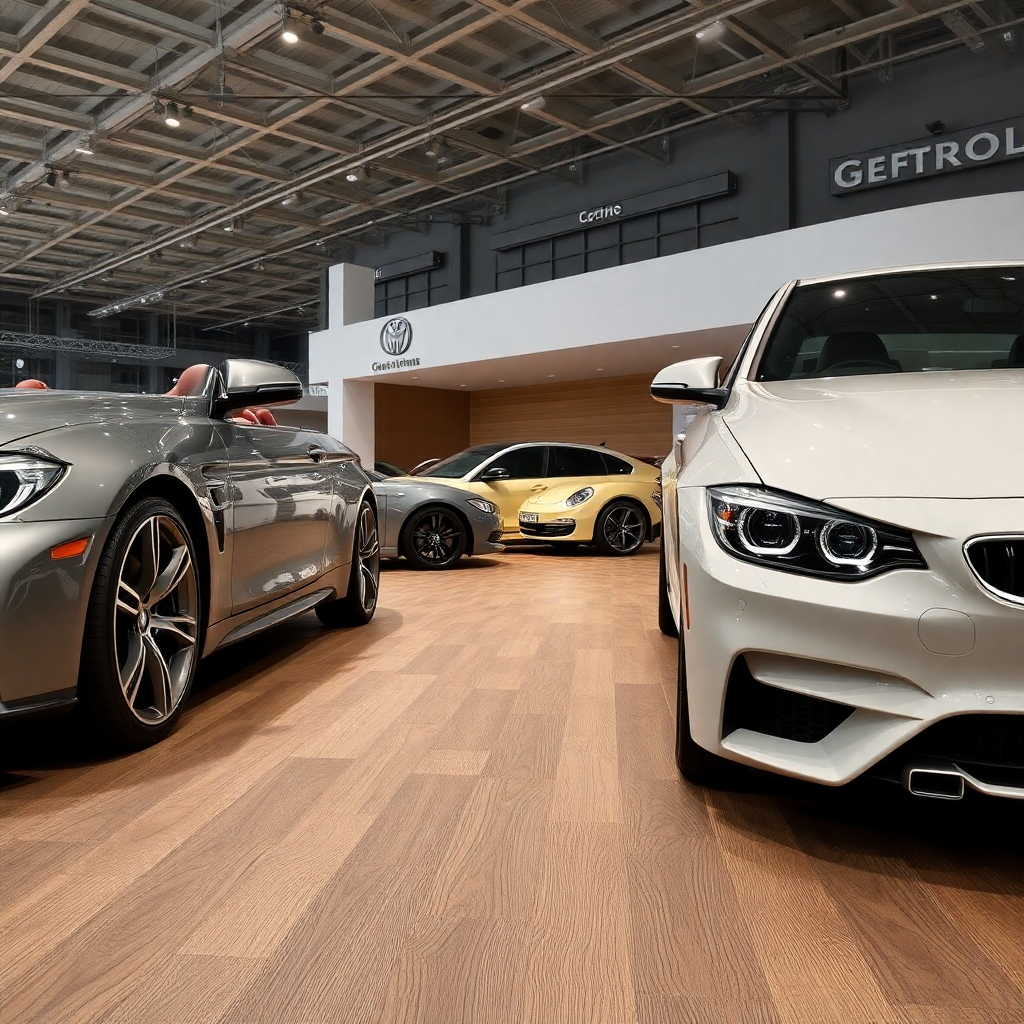

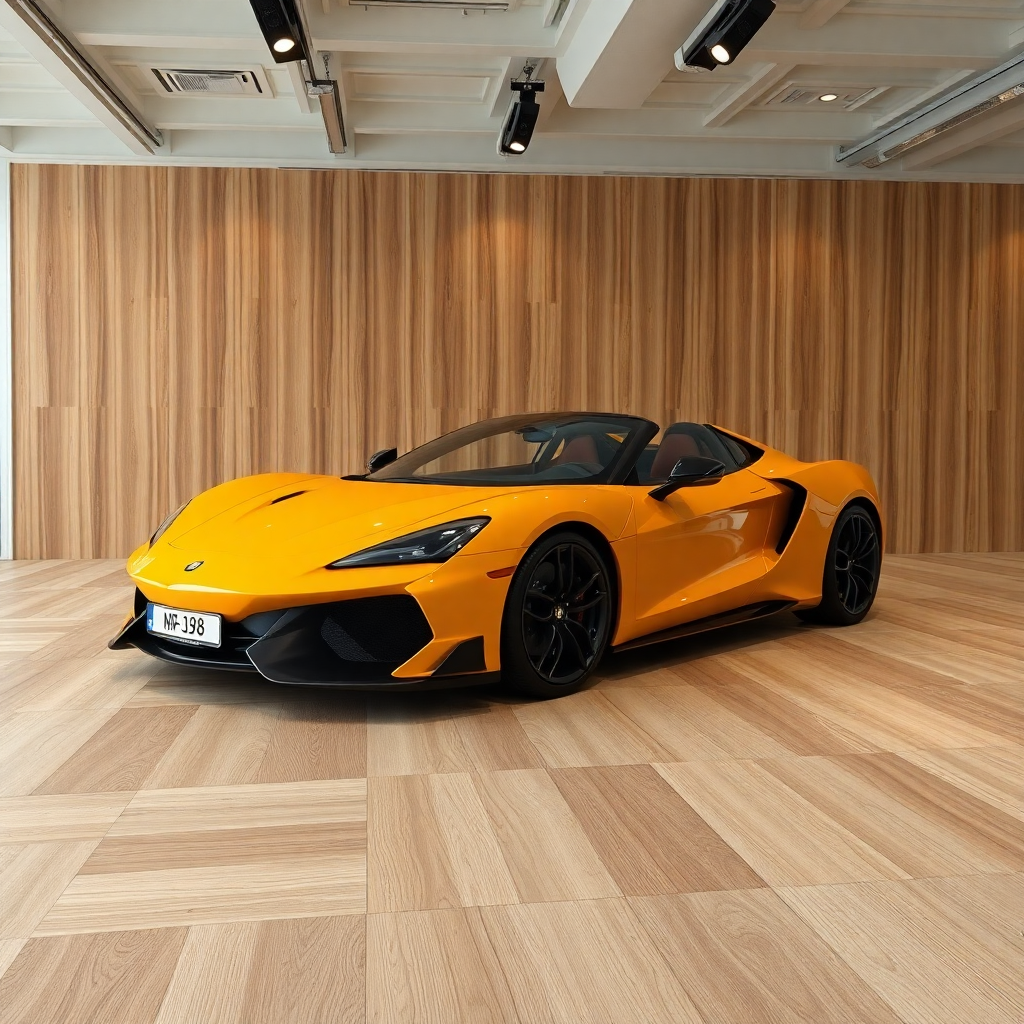

With EVC flooring, you get premium visual finishes with practical performance. Available in wood, stone, or metallic looks, these click-fit tiles elevate any branded flooring zone, from hospitality lounges to feature vehicles at indoor expos. They also allow custom logo inlays via laser cut designs.
- 🎨 Offers visual patterns (woodgrain, fleck, stone)
- 🧩 Fast-fit click-lock installation
- 🔇 Noise-dampening underfoot for visitor comfort
- 🪞 Ideal for brand customisation and event theming
Perfect for: premium dealer displays, concept car zones, launch event platforms

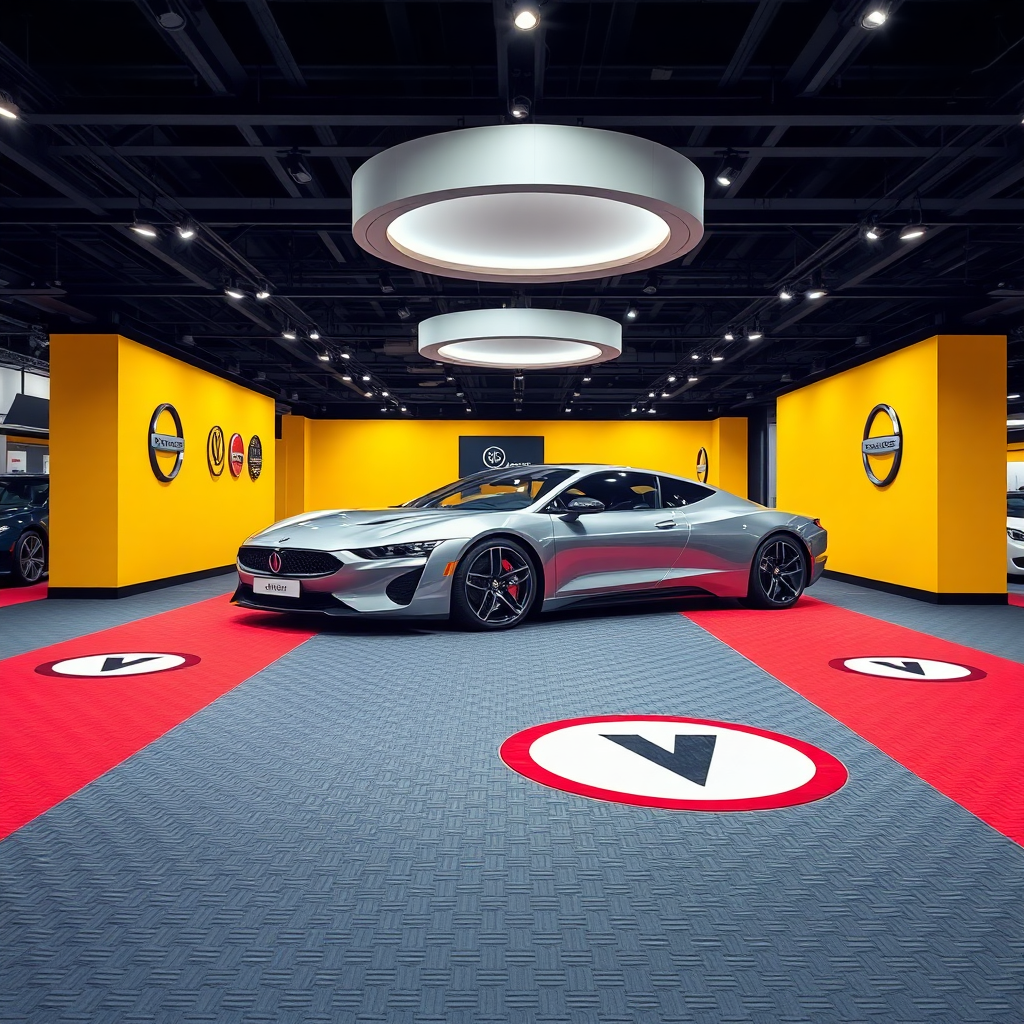

PCP – Propylene Copolymer Panels & Tiles
Lightweight Flooring for Portable Automotive Display Areas

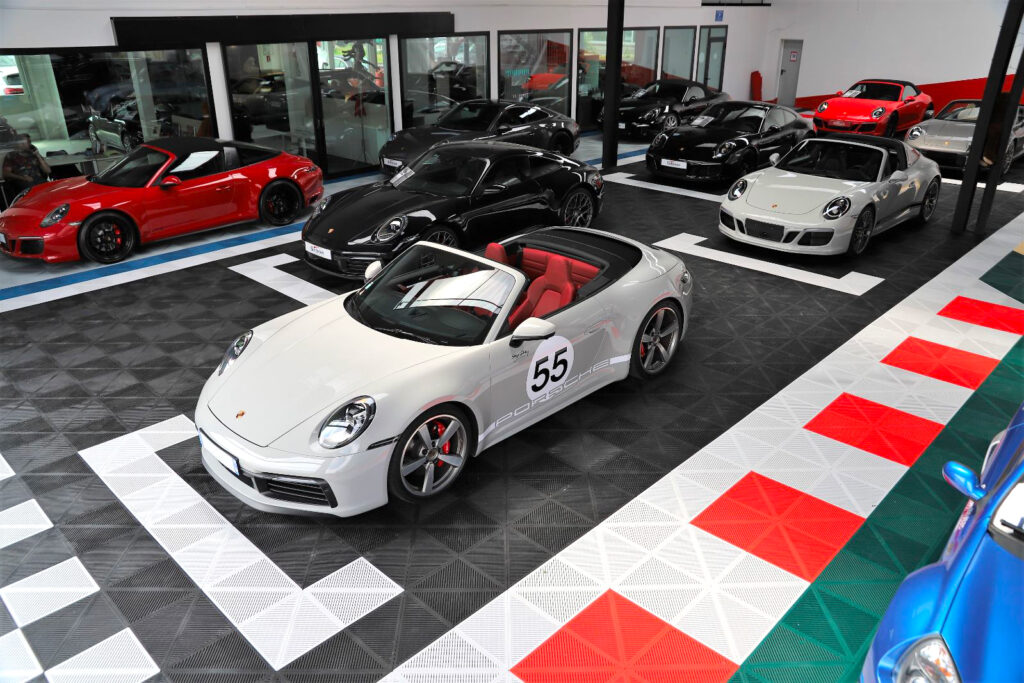

PCP interlock flooring is ideal for demo vehicles, grid layouts, and portable displays that need fast, professional impact. With a drainage profile, textured surface, and lightweight build, it excels at rapid indoor deployment—and adds a sharp, photogenic base to branded showcases.
- 📸 Excellent for photogenic display bases
- 🌦️ Suitable for wet or dry event spaces
- 🔲 Works with grid or modular layouts
- 🚚 Portable and lightweight, ideal for roadshows
Perfect for: indoor showrooms, racing team activations, portable brand kits

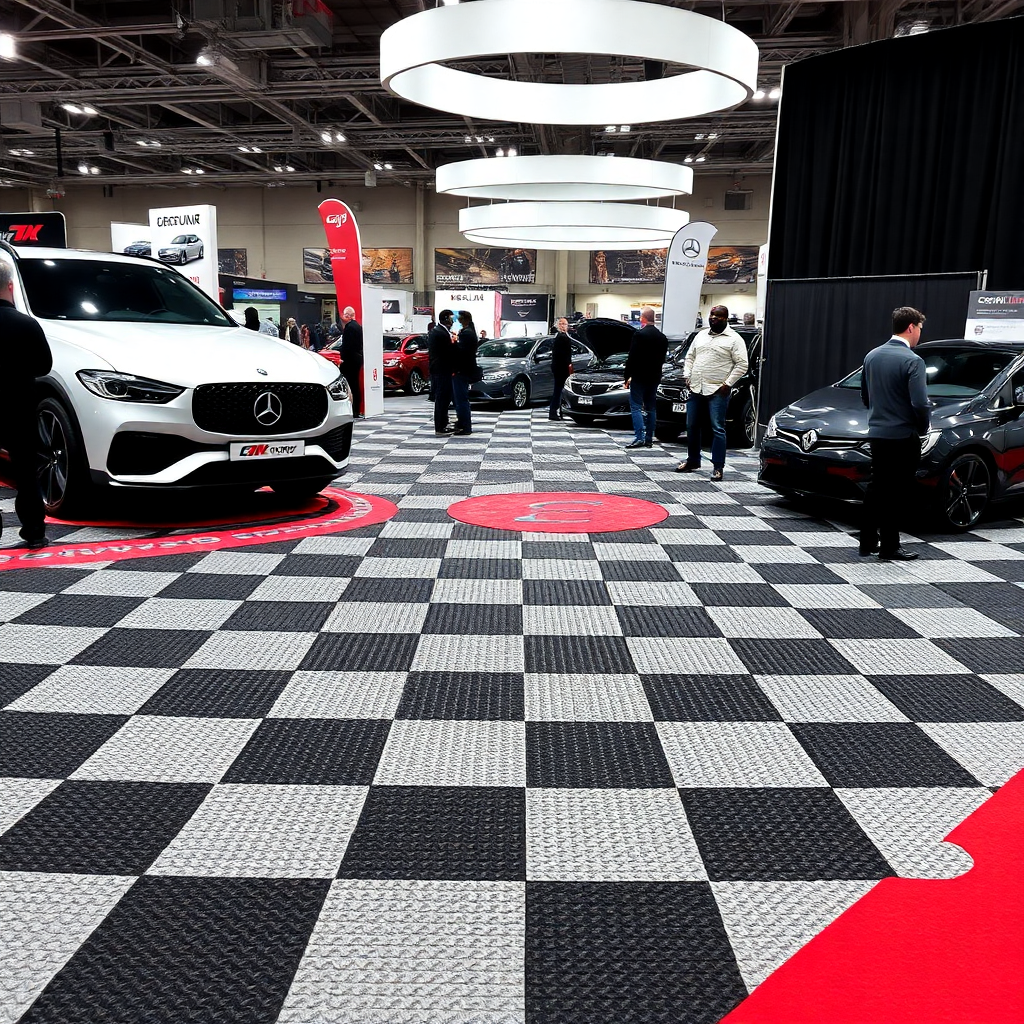

ECP – Elastomer Cross-linked Polymer (Rubber) Tiles
Ergonomic Flooring for Service Zones & Pit Display Setups

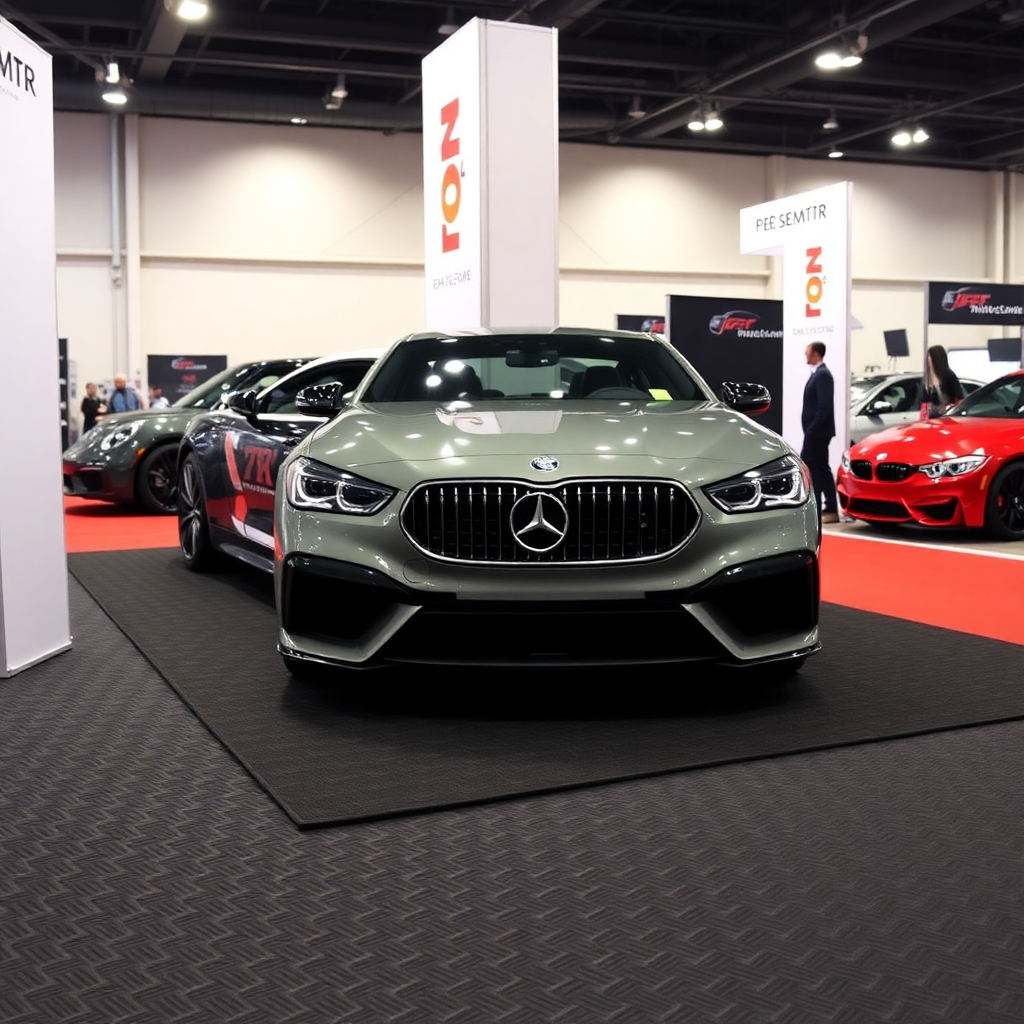

ECP tiles bring superior shock absorption, anti-fatigue comfort, and chemical resistance to any behind-the-scenes or working display zone. They’re perfect for pit lanes, live demo areas, or mobile tech zones—where teams are on their feet, and the flooring must endure tough treatment.
- 🛡️ Resistant to oils, chemicals, abrasion
- 🦶 Provides anti-fatigue support for staff
- ⚙️ Perfect for tech bays, garages, or pit displays
- 🔧 Easy to relocate, clean, and reconfigure
Perfect for: pit service setups, tech pods, utility flooring at automotive shows

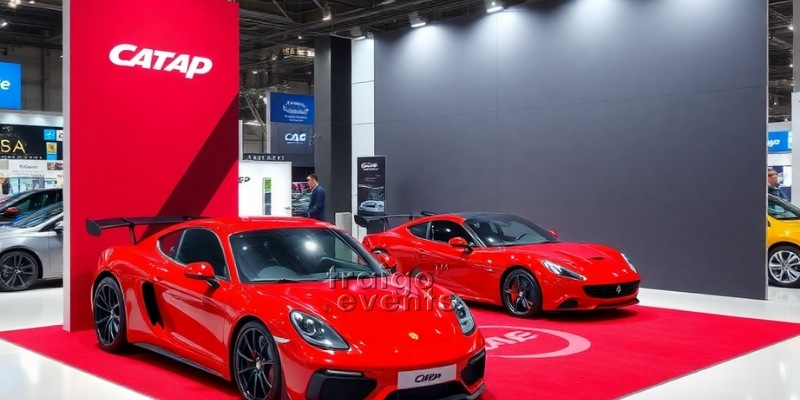

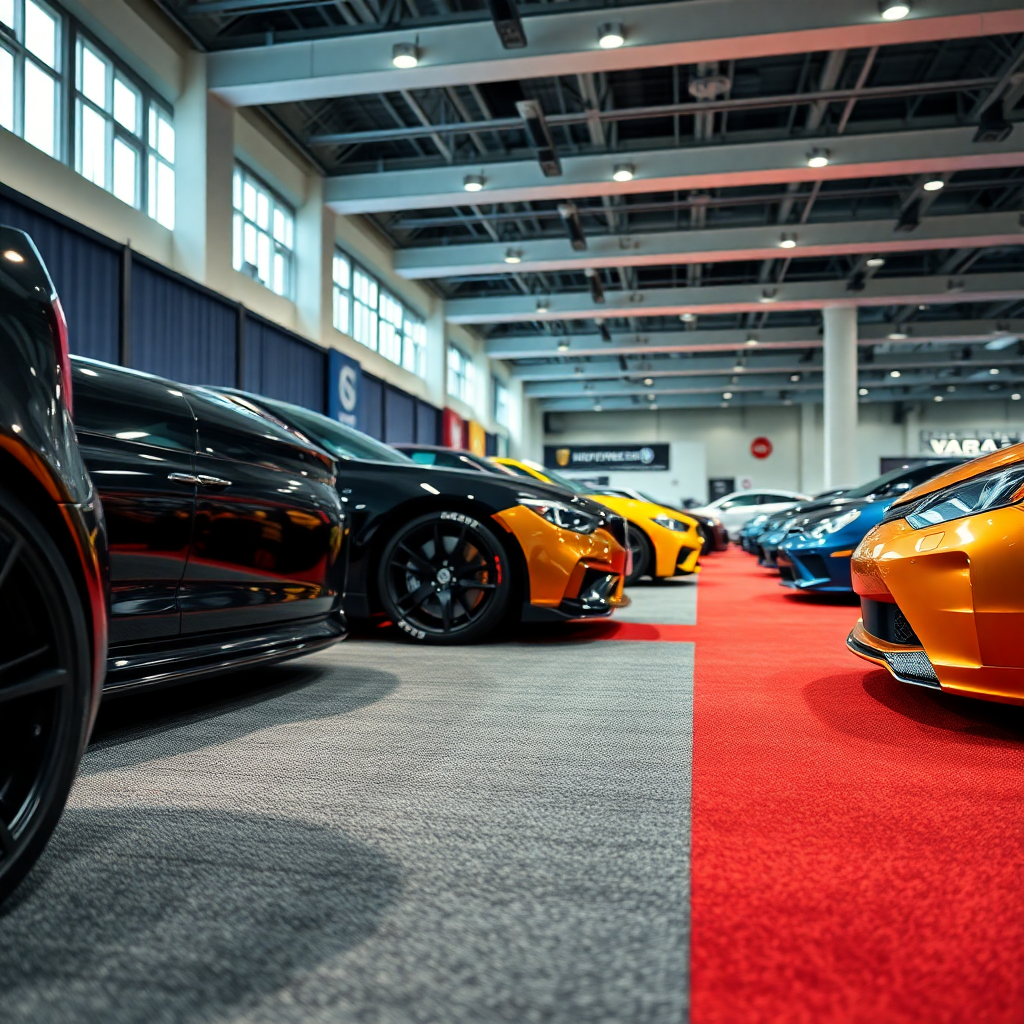

TFT / TFR – Textile Flooring Formats (Tiles & Rolls)
Ergonomic Flooring for Service Zones & Pit Display Setups

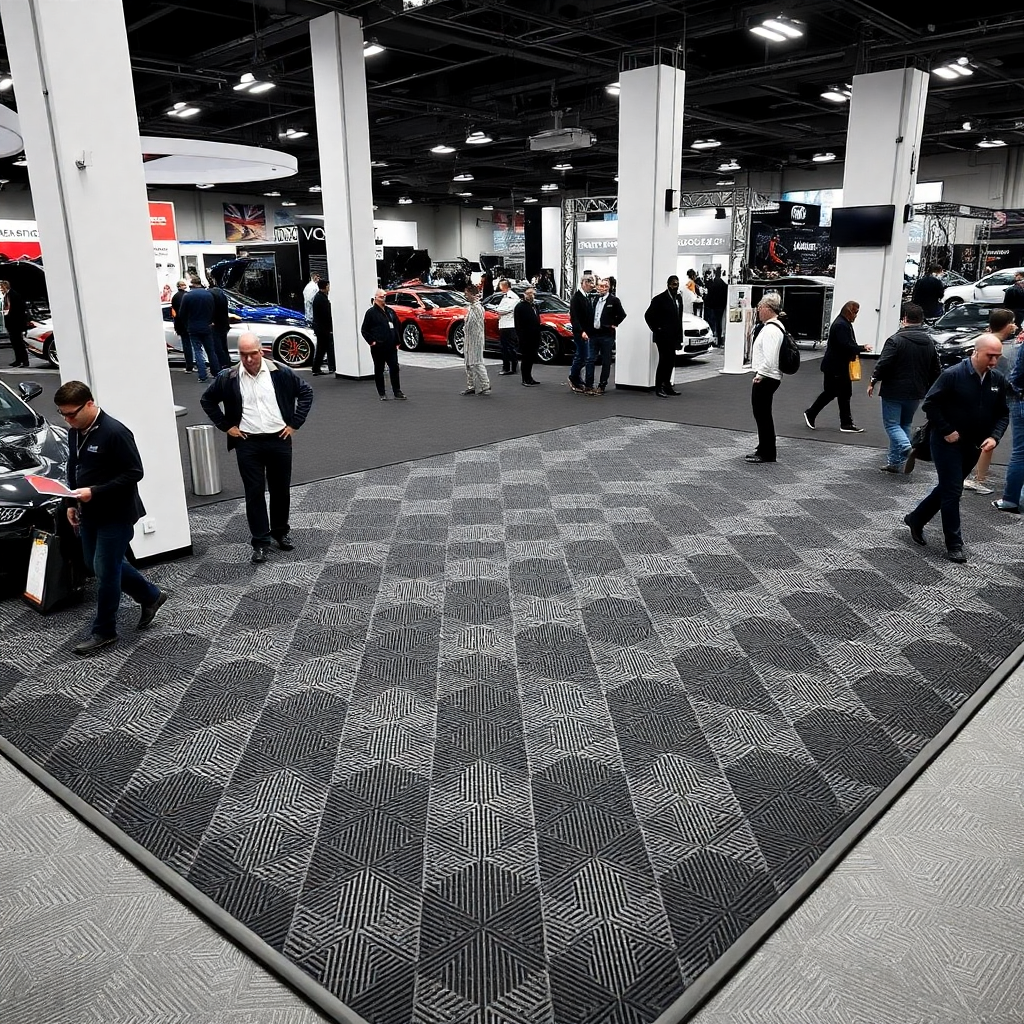

Textile flooring (tiles or rolls) offers a warm, inviting surface for car show lounge zones, press areas, or consultation booths. With noise-reducing benefits and options for print or laser-cut logo customisation, they’re a go-to for spaces where comfort and elegance matter.
- 🛋️ Creates a VIP or hospitality feel
- 🔇 Reduces echo and ambient noise
- 🧵 Available in custom colours and patterns
- 👣 Soft, comfortable, and foot-traffic ready
Perfect for: high-end brand pavilions, lounge areas, press suites
Would you like a web-optimised layout suggestion next (e.g. tabs or collapsible sections)?
Certified Event Flooring: A Guide to Safety, Compliance & Sustainability
n the world of public events and automotive showcases, safety and compliance are non-negotiable. The right certifications are not just a line on a spec sheet; they are your assurance of quality, a commitment to public safety, and a demonstration of environmental responsibility.
This guide details the rigorous testing and independent certifications our flooring systems have earned. Understand how our fire-rated, slip-resistant, and sustainable flooring solutions provide the peace of mind needed to meet strict venue regulations and deliver a flawless, safe event.
Thermoplastic Resin (TRM) Flooring: Certified for Fire Safety, Slip Resistance & Sustainability
Our heavy-duty TRM flooring is engineered to meet the highest standards, making it a reliable and compliant choice for any indoor exhibition or car display.
Meeting Strict Venue Fire Safety Regulations
With a superior EN/ISO 13501-1 classification of Bfl-s1, our TRM tiles meet stringent UK/EU fire safety standards. This certification is often a mandatory requirement for public exhibition halls, ensuring limited flame spread and enhanced safety.
Ensuring Visitor Safety with Certified Slip Resistance
Independently tested and certified to the R10 / DS German standard, our flooring provides excellent anti-slip traction. This significantly lowers the risk of slips and falls in high-traffic zones or around vehicles, protecting visitors and staff.
A Sustainable Solution with Certified Carbon-Neutral Manufacturing
Our TRM flooring is produced in an ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certified facility. Made from 100% recyclable PVC, the manufacturing plant is also PAS 2060 carbon-neutral certified, making it the perfect choice for sustainability-led events.
Engineered Vinyl Composite (EVC): Certified for Air Quality & Heavy Commercial Use
Our luxury EVC flooring combines premium aesthetics with certifications that guarantee durability and a healthy indoor environment, crucial for enclosed event spaces
Certified Low-VOC for Superior Indoor Air Quality
Protecting visitor and staff well-being is paramount. Our EVC flooring boasts top-tier indoor air quality certifications, including Floorscore®, Blue Angel, and an A+ grade for low VOC emissions (<1000 µg/m³). This is critical for meeting venue-specific air quality schemes.
Third-Party Verified Environmental Product Declaration (EPD)
Our commitment to transparency is proven with an EPD certified to ISO 14025. This declaration provides detailed lifecycle information, contributing valuable credits to green building schemes like LEED and BREEAM and supporting your client’s environmental compliance goals.
Proven Durability for Heavy Commercial Traffic
Certified to the highest performance classes (Class 34-43), our EVC flooring is built to withstand the demanding conditions of an auto show, including heavy foot traffic and the point-loads of vehicle displays.
Propylene Copolymer Plastic (PCP): The CE-Marked Modular Flooring Solution
Our PCP tiles offer a lightweight, modular, and incredibly strong flooring solution that is certified for safety and performance in the EU market.
CE Marking for Assured Product Safety & Compliance
The CE Marking on our PCP tiles confirms compliance with EU Toy and Construction Product Regulations. This verifies key performance characteristics, including slip resistance and load-bearing capabilities essential for a safe temporary floor.
Certified Fire-Rated and Slip-Resistant
Typically classified as Class E or C under EN 13501-1, our PCP flooring is acceptable for most display flooring applications. Many ranges are also tested to DIN 51130 (R9-R11) for slip resistance, ensuring health and safety adherence, especially around vehicles where oil or water may be present.
Elastomer Cross-linked Polymer (ECP): Heavy-Duty & Fire-Rated Rubber Flooring
Our ECP rubber flooring is the definitive choice for areas requiring maximum durability, safety, and acoustic performance.
A Superior Fire Rating for High-Risk Zones
Many of our non-combustible rubber tile variants are tested to EN 13501-1 and achieve a Bfl-s1 rating. This high level of fire safety is paramount for heavy exhibition flooring and automotive displays where risk mitigation is key.
Naturally High-Grip and Slip-Resistant
With a naturally high-friction surface, our ECP flooring is often rated R9-R11 for slip resistance. The non-porous surface is also easy to clean, helping to maintain a safe, non-slip floor throughout the event.
Certified for a Healthy & Non-Toxic Environment
Formulated to be lead-free and phthalate-free, our rubber flooring reduces the risk of off-gassing, contributing to better indoor air quality and assisting with venue permits.
Textile Flooring Formats (TFF): Certified for Commercial Use & AV Safety
Our carpet tiles provide a comfortable and sophisticated flooring solution that is certified for durability and safety in professional environments.
Fire Safety Certified for Public Venues
Our TFF products meet critical fire safety standards for textiles, typically rated to BS 4790 and achieving a Cfl-s1 rating under EN 13501-1, ensuring compliance in public spaces.
Antistatic Performance for Safe Electronics Use
Evaluated per ISO 6356, our carpet tiles are certified as antistatic. This is a key performance metric for safety around sensitive audio-visual equipment, lighting rigs, and electronic car displays.
Certified Heavy Commercial Wear & Sustainable Credentials
Compliant with EN 1307 Class 33, our carpet tiles are built to withstand heavy commercial use. Furthermore, many ranges carry sustainability credentials like Green Label Plus or Cradle to Cradle, with recyclable backing materials to support a circular economy.
Flooring Certification Summary Table
Material | Fire Rating | Slip Certification | Sustainability / VOC | Key Features |
TRM (PVC) Tiles | Bfl‑s1 | R10 / DS anti‑slip | ISO 14001, Recyclable, Carbon-Neutral | Long-life, Chemical-Resistant |
EVC (LVT) Tiles | Bfl-s1 (varies) | R9 / DS | Floorscore, A+ VOC, EPD | Excellent Indoor Air Quality |
PCP Tiles | Class E / C | R9–R11 | Recyclable, CE Marked | Lightweight, Temporary Flooring |
ECP (Rubber) Tiles | Bfl‑s1 | R9–R11 | Non-Toxic, Recycled Content | Heavy-Duty, Vehicle-Rated |
TFF (Carpet) Tiles | Bfl‑s1 / Cfl‑s1 | EN 1307 Class 33 | Green Label Plus, Antistatic | Acoustic Comfort, Wear-Rated |
Low-Maintenance Event Flooring: A Guide to Cleaning & Long-Term Value
Choosing the right car show display flooring is an investment. Our high-performance modular flooring systems are engineered not just for a stunning first impression, but for exceptional long-term value and a low cost of ownership.
This guide demonstrates how our durable and resilient floor solutions are incredibly simple to clean and maintain. Protect your investment, extend the life of your reusable flooring, and ensure your warranty remains valid with these easy, cost-effective cleaning protocols.
Thermoplastic Resin (TRM) Flooring: A Low-Maintenance & Durable Flooring Solution
Our TRM flooring is a heavy-duty champion, built to withstand constant foot traffic and still look showcase-ready with minimal effort. Its non-porous, waterproof surface makes it a truly low-maintenance solution.
Simple Daily Care for High-Traffic Event Areas
A quick sweep or vacuum is all that’s needed to remove daily grit from your interlocking mats. For a restored shine, a damp mop with a simple, neutral cleaner keeps this resilient floor looking its best, making it perfect for busy exhibition stands.
A Cost-Effective Deep Clean for a Flawless Finish
After a long event, restore that brand-new finish with a standard low-RPM floor scrubber. No harsh or expensive chemicals are needed. This simple process ensures your temporary flooring is pristine and ready for the next Motorshow.
The Value Proposition: This easy-care routine means less time and money spent on maintenance. It’s a durable Car Display Floor designed for a fast turnaround and a consistently professional appearance, project after project.
Engineered Vinyl Composite (EVC): Premium Vinyl Flooring with Effortless Upkeep
EVC delivers a luxury aesthetic without the high-maintenance headache. The commercial-grade wear layer and stain-resistant surface protect your custom or printed car display floor from scuffs and spills.
Maintaining a Flawless Finish with Daily Care
A daily dust-mop or vacuum with a soft brush head is sufficient to maintain the floor’s sophisticated appearance. This simple step protects the interlocking car show floor tiles from abrasive grit.
Easy Spot Cleaning & Stain Removal
Engineered for ultimate durability, our PCP plastic floor panels offer the fastest and easiest cleaning routine possible, making them a highly practical solution for any event, indoors or out.
The Easiest Wash-Down Maintenance Routine
Simply sweep away loose debris from your modular car show flooring, then hose it down. Dirt washes away in seconds. For tougher, greasy marks, a soft brush and a standard neutral detergent are all you need.
The Value Proposition: This is the definition of a low-cost, low-maintenance flooring solution. Its incredible ease of cleaning saves valuable time during event breakdown and setup.

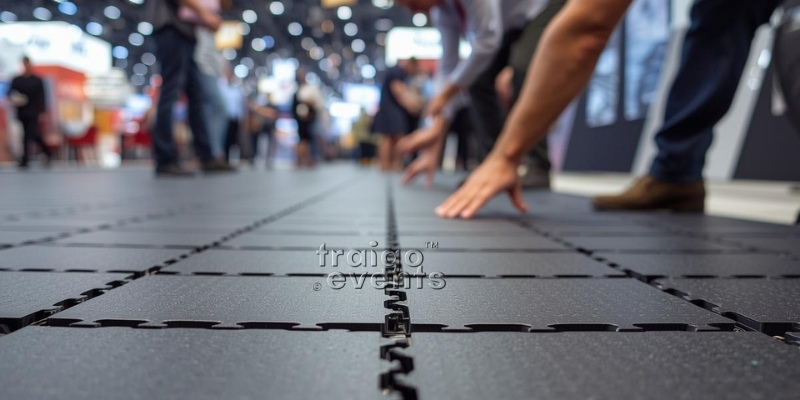

Rapid Deployment Flooring: The Guide to Fast, Cost-Effective Installation
In today’s fast-paced event landscape, time is money. A slow, complicated installation process increases labour costs and adds unnecessary stress. Our modular flooring systems are engineered for rapid deployment and simple, damage-free removal.
This guide provides clear, step-by-step instructions to ensure a flawless installation of your reusable flooring. Discover how our adhesive-free designs can save you time, reduce costs, and deliver a perfect finish every time.
Thermoplastic Resin (TRM) Flooring: A Reusable & Heavy-Duty Interlocking System
TRM is the workhorse of our collection, offering a durable, heavy-duty surface that installs and removes in record time. It’s the ideal temporary flooring for roadshows, exhibitions, or large event spaces.
Simple Subfloor Preparation for a Flawless Result
Ensure the subfloor is clean, dry, and level. A 24–48 hour acclimatisation period helps panels settle, ensuring a professional fit on concrete, plywood, or low-pile carpet.
Fast, Adhesive-Free 'Click' Installation
No glue required. Just align the TRM panels and tap them gently into place using a rubber mallet. For a wall-to-wall finish, trim perimeter tiles using a utility knife, leaving a 5–10 mm expansion gap.
Damage-Free Removal for Cost-Effective Reuse
Breakdown is fast and clean. Use a suction-cup tool to lift panels, wipe down, and stack. The result? A reusable, sustainable flooring system that saves both time and money across multiple events.
Engineered Vinyl Composite (EVC): A Luxury Vinyl Floor with Simple Installation
EVC flooring blends premium aesthetics with a puzzle-lock interlocking system, making it the ideal option when looks matter but speed and simplicity can’t be compromised.
Achieving a Perfect Base for Your Premium Vinyl Tiles
All you need is a clean, level, dry subfloor. No adhesives. Perfect for high-end exhibition halls where venue floors must remain undamaged.
The Simple 'Puzzle-Lock' Installation Method
Begin in the centre and work outward. Lay the EVC tiles in a staggered pattern for visual effect. A light tap with a rubber mallet is enough to engage the interlocking joints
Easy Removal and Single-Tile Replacement
Need to replace a tile during the event? No problem. Use a tile hook to lift the damaged piece without disturbing the rest. This modularity makes EVC a cost-efficient flooring solution with minimal disruption.
Propylene Copolymer (PCP) Plastic: Our Fastest Flooring for Rapid Deployment
When installation speed is your top priority, PCP tiles deliver. Lightweight yet rigid, they snap together with minimal effort, cutting labour time and cost dramatically.
A Versatile Base for Instant Floor Installation
PCP tiles can be laid on concrete, asphalt, compacted gravel, or any other firm, level base. Just ensure the surface is clear of dust and debris.
The Effortless 'Snap & Lock' Assembly
Simply snap tiles together in sequence. The locking clips create a secure, flat surface in minutes — no tools or adhesives required.
The Quickest Breakdown for Demanding Schedules
PCP makes teardown just as efficient. Unclip, clean, and stack. Its durable design stands up to fast-paced, high-turnover event environments.
Elastomer Cross-linked Polymer (ECP): A Safe & Resilient Rubber Floor
ECP flooring is chosen for its resilience, slip resistance, and safety. Ideal for high-footfall or wet areas, it can be loose-laid or fixed, depending on your application.
Simple Preparation for a Safe and Stable Floor
Subfloor should be clean and level. For temporary setups, a loose-lay method works well due to the tiles’ inherent weight. For long-term use, refer to our bonding specifications.
Easy Installation of Heavy-Duty Rubber Tiles
Arrange and press the interlocking rubber tiles into position. For high-traffic environments, use perimeter pins to enhance security
Straightforward Removal for Reusable Applications
For loose-laid installs, just lift, clean, and reuse. This makes ECP a long-term, eco-conscious option for venues needing repeated setup and breakdown.
Textile Flooring Formats (TFT / TFR): A Sophisticated Carpet Tile System
Our carpet tile and roll flooring delivers a refined, professional finish for lounges, exhibitor spaces, and premium showcases.
Preparing for a Seamless Carpet Tile Installation
Start with a clean, dry underlay. Acclimate your textile tiles or rolls for 24 hours to ensure they lay flat and seamless.
Standard Installation for a Professional Finish
Use tackifier adhesive or double-sided carpet tape. Lay tiles in your desired pattern, keeping seams tight. Finish by rolling over with a carpet roller to ensure secure bondingUse tackifier adhesive or double-sided carpet tape. Lay tiles in your desired pattern, keeping seams tight. Finish by rolling over with a carpet roller to ensure secure bonding
Cost-Effective Maintenance with Single Tile Replacement
Need to replace just one tile? No problem. The modular design allows for quick spot replacement, making it ideal for long-term, budget-conscious projects.
Installation Best Practices for All Flooring Types
- Match the material to load requirements (e.g. vehicles, display weights, pedestrian traffic).
- Specify tile sizes and quantities in advance to reduce waste and cutting time.
- Include all performance metrics: load bearing, slip resistance, fire rating, sound insulation.
- Detail subfloor prep and removal steps to plan for install/derig labour.
- Always mention warranties or service terms for better buyer comparison.
Advanced Spec Notes:
- Ramp edges: Choose 25 mm or 50 mm bevelled ramps for safety and accessibility.
- Fire rating: Look for Euroclass Bfl-s1 for venues with indoor fire regulations.
- Acoustic performance: Include impact sound reduction (ΔLw in dB) for speaker-heavy events.
- Thermal insulation: Check R-value or U-value if heat or cold is a concern.
- Custom branding: Add printed logos or custom colours to align with exhibitor identity.
- Cleaning & maintenance: Outline approved products and resistance to chemicals.
Environmental credentials: ISO 14001, low VOCs, and fully recyclable material options.
Material Specifications by Format
Thermoplastic Resin (TRM) Interlocking Tiles
Typical Sizes (mm / inches):
- 333 × 333 mm → 13.1″ × 13.1″
- 450 × 450 mm → 17.7″ × 17.7″
- 500 × 500 mm → 19.7″ × 19.7″
- 600 × 600 mm → 23.6″ × 23.6″
Thickness Options: 5 mm, 6 mm, 7 mm, 9 mm, 10 mm
Estimated Weight per Unit: 0.8 kg – 3.8 kg
(e.g., 500 × 500 × 7 mm ≈ 1.9 kg)
Fast, Adhesive-Free 'Click' Installation
Tile Sizes (mm / inches):
- 457 × 457 mm → 18″ × 18″
- 635 × 635 mm → 25″ × 25″ (Gerflor GTI / Forbo Puzzle)
- 960 × 960 mm → 37.8″ × 37.8″
- 1000 × 1000 mm → 39.4″ × 39.4″
Plank Format: 1505 × 237 mm → 59.25″ × 9.3″
Thickness Options: 4 mm, 5 mm, 5.5 mm, 6 mm
Wear Layers: 0.55 mm or 0.70 mm (e.g., Creation 55, 70)
Estimated Weight per Unit:
- 457 × 457 × 5 mm ≈ 1.2 kg
- 635 × 635 × 6 mm ≈ 2.7 kg
- 1000 × 1000 × 6 mm ≈ 6.5 kg
Propylene Copolymer (PCP) Interlocking Tiles & Panels
Typical Sizes (mm / inches):
- 300 × 300 mm → 11.8″ × 11.8″
- 333 × 333 mm → 13.1″ × 13.1″
- 400 × 400 mm → 15.7″ × 15.7″
- 494 × 494 mm → 19.4″ × 19.4″
- 580 × 580 mm → 22.8″ × 22.8″
- Triangular Format: 2 tiles = 400 × 400 mm
Thickness Options: 14 mm, 16 mm, 18 mm, 30 mm
Estimated Weight per Unit: 0.5 kg – 1.7 kg
(e.g., 580 × 580 × 30 mm ≈ 1.7 kg)
Elastomer Cross-linked Polymer (ECP) Modular Tiles
Typical Sizes (mm / inches):
- 300 × 300 mm → 11.8″ × 11.8″
- 457 × 457 mm → 18″ × 18″
- 610 × 610 mm → 24″ × 24″
Thickness Options: 3 mm, 6 mm, 8 mm, 10 mm, 12 mm+
Estimated Weight per Unit: 0.8 kg – 3.8 kg
(e.g., 610 × 610 × 10 mm ≈ 3.5 kg)
Textile Flooring Formats (TFT / TFR) – Carpet Tiles & Planks
Sizes (mm / inches):
- 500 × 500 mm → 19.7″ × 19.7″
- 250 × 1000 mm → 9.8″ × 39.4″
Thickness Range: 6.0 mm – 8.5 mm
(Pile heights: 3.0 mm to 6.0 mm depending on style)
Approximate Weights:
- Per Tile: 1.0 – 1.2 kg
- Per Plank: ~1.1 – 1.3 kg
- Area Weight: 4.0 – 4.9 kg/m²
Why It Matters
Tile Dimensions
You can get both smaller, rectangular and full-size square tiles, allowing better flexibility in design and layout.
Thickness & Wear Layers
- Heavy-duty 6 mm with a 0.70 mm wear layer in EVC flooring
- Full 7 mm in TRM, ideal for high-traffic zones
Click System
Both use adhesive-free interlocking systems, making installation fast and tool-free — ideal for temporary event flooring or exhibition flooring.
Additional Design & Performance Insights
Versatility in Sizes
From compact interlock tiles (12″×12″) to heavy-duty roadway panels (38″×11″) — there’s a format for every application.
Structural Strength
All formats are engineered to support vehicles, resist weather exposure, and handle high loads without deformation.
Speed of Installation
Snap-fit systems allow for rapid deployment and are ideal for short-turnaround events, pop-ups, or emergency flooring needs.
Design Flexibility
Triangular tiles, connector edges, and plank formats enable customised layouts, even in irregular zones.
Why This Is Useful
- Wide tile/panel range: From grid tiles (400 × 400 mm) to long panels (966 × 275 mm)
- Heavy-duty thicknesses: Especially formats like Supa-Trac (up to 34 mm) for vehicle-grade loads
- Lightweight + strong: Perfect for quick event setups, brand activations, and mobile exhibits
- Outdoor-ready: Many formats are UV-resistant and water-permeable for turf protection
Why This Matters for Buyers
You can now specify tailored flooring for different event environments — from compact product displays to wide-format automotive bays.
- Smaller tiles (e.g., 333 × 333 mm, 300 × 600 mm) = custom fit & easy handling
- Larger tiles & planks (e.g., 457 × 914 mm, 1200 mm panels) = seamless coverage for open zones
- Multiple thicknesses = alignment with foot traffic, vehicle weight, and aesthetic requirements
Top Tips – How to Use This Information
When Creating a Spec Sheet
- Match material to load requirements (e.g., cars, lifts, display stands)
- Specify sizes & quantities to avoid cutting waste
- Include certifications: load-bearing, slip resistance, fire rating, acoustics
- Mention install/removal time and subfloor prep
- Add warranties to support long-term value comparisons
This kind of technical detail builds buyer confidence and helps sales teams filter leads more effectively.
Nice-to-Have” Specification Details
- Edge Profiles & Ramps: Typically 25 mm or 50 mm bevelled edges for trip safety
- Fire Safety Ratings: e.g. EN 13501-1 Euroclass Bfl-s1 for indoor setups
- Acoustic Performance: Specify ΔLw dB reduction for venues using PA systems
- Thermal Values: R-value/U-value matters for climate control & engine heat
- Branding Options: Custom colours or printed logos for exhibition flooring
- Cleaning Guidance: Include chemical resistance and routine care tips
- Environmental Certs: Highlight ISO 14001, ISO 9001, or low-VOC emissions

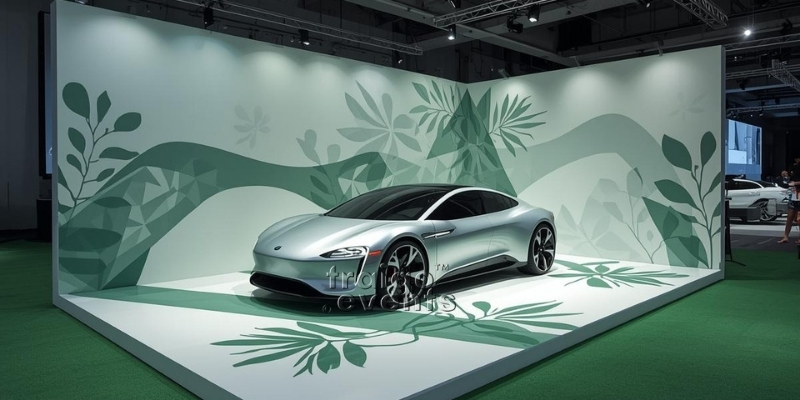

Sustainable Car Show Flooring: Traigo’s Commitment to Eco-Friendly Automotive Events
At Traigo, sustainability isn’t an afterthought — it’s engineered into the very core of every flooring solution we offer. Our eco-friendly car show flooring is designed to meet the high standards of automotive events while helping reduce your environmental impact. Whether it’s a vehicle launch, brand activation, or exhibition stand, we focus on circular design, material health, and responsible manufacturing — so you can focus on performance and planet.
Thermoplastic Resin / TRM Flooring
Reusable, Lightweight & Responsibly Made
Traigo’s Thermoplastic Resin (TRM) flooring leads the way in reusable event flooring, offering high durability for multiple automotive exhibitions.
- Engineered for Reuse: Built to be reinstalled across shows, reducing landfill waste and setup time.
- Recyclable Composition: Made in ISO 14001-certified factories using recyclable content for sustainable performance.
- Lower Carbon Emissions: Lightweight panels help reduce transport emissions and simplify on-site handling.
- No Harsh Chemicals Needed: Easy-clean surface supports chemical-free maintenance in vehicle display zones.
Engineered Vinyl Composite / EVC Flooring
A Circular Choice for Premium Vehicle Displays
Our interlocking EVC tiles (inspired by systems like Gerflor’s GTI or Forbo’s Allura Puzzle) are ideal for luxury automotive showcases that require quick installs without compromising on aesthetics or sustainability.
- Up to 69% Recycled Content: Delivers a high eco-value ratio, perfect for environmentally conscious brand activations.
- Low-VOC & PVC-Free: Uses a stone polymer core and phthalate-free materials, certified for material health and user safety.
- 100% Renewable Manufacturing: Produced in Europe using clean energy with EPD and ISO 14001 backing.
- Closed-Loop System: Part of our take-back program, supporting full flooring circularity after your event.
- Adhesive-Free Interlocking System: Enables fast setup and tool-free reconfiguration across different show layouts.
Propylene Copolymer Plastic / PCP Flooring
Heavy-Duty Ground Protection for Vehicle Zones
Our Propylene Copolymer (PCP) tiles are built for strength, resilience, and recyclability — ideal for, vehicle access ways, and outdoor car displays.
- 100% Recyclable Modular Tiles: Robust yet sustainable, made from polypropylene for repeat use.
- Closed-Loop Recovery: After use, tiles are collected, granulated, and remade — reducing event-generated plastic waste.
- Supports Up to 100 Tonnes: Withstands heavy static loads, ideal for large vehicles and temporary parking zones.
- Quick Deployment System: Interlocking panels install rapidly, ideal for fast-turnaround exhibitions.
Elastomer Cross-linked Polymer / ECP Flooring
Tough, Recycled Rubber for Outdoor & Vehicle Use
Made from upcycled rubber waste, our ECP flooring is a heavy-duty solution for vehicle display surfaces, ramp access, or outdoor car exhibitions.
- Made from Recycled Rubber: Repurposes industrial waste into impact-resistant event flooring.
- Clean Energy Certified: Produced in facilities aligned with carbon-neutral flooring goals.
- Recyclable After Use: Collected via our Traigo ReEntry scheme to avoid landfill and close the recycling loop.
BS EN 1177 Certified: Offers anti-slip protection for foot traffic and vehicle movement, with proven safety ratings.
Textile Flooring Formats / TFT & TFR
Sustainable Style for Lounges & Hospitality Areas
Available in both modular tiles (TFT) and roll format (TFR), our Textile Flooring brings design-led comfort to VIP lounges, reception zones, and premium activation spaces.
- Eco-Fibres from Recycled Nets & Nylon: Crafted using ocean-recovered materials and post-consumer fibres.
- Reusable Hospitality Flooring: A durable, high-quality alternative to single-use carpets for premium events.
- Creative Freedom with Low Impact: Choose between tiles or rolls to match your design goals and sustainability standards.
Pro Tips: Sustainable Flooring Done Right
- Match Format to Use: Use EVC interlocking tiles for quick setups, TRM for modular reuse, and PCP for vehicle load areas.
- Go Closed-Loop: Ask about our Traigo take-back and ReEntry programs they’re designed to keep your flooring out of landfills.
- Plan for Repeat Use: Design your floor plan to allow easy lifting and reinstallation — saving cost and carbon.
- Layer Your Spaces: Combine ECP for outdoor zones, TRM for mid-traffic, and TFT/TFR for lounges to create a multi-functional, fully sustainable space.
Textile Flooring Formats (TFT / TFR) – Soft Surface Solutions for Car Show Flooring
Tactile Comfort and Brand Expression in Event Flooring
In high-impact environments like automotive exhibitions and vehicle showcases, Textile Flooring Formats (TFF)deliver a distinct sense of polish and comfort. Whether you’re curating a VIP lounge, media enclosure, or reception space, TFT and TFR help define zones while elevating the visitor experience. These textile formats create a visual and sensory contrast to surrounding modular flooring or hard-surface display zones, softening acoustics and drawing attention to premium areas.
Available in a wide range of colours, designs, and patterns, TFF can be customised to align with your brand identity, event theme, or zone signage. More than just a surface, it becomes part of your visual language—supporting both branding and wayfinding.
Critically, TFF allows extensive customisation with logos, graphics, and visual imprints—all achievable through precision print or laser-cut techniques. Whether you’re showcasing a logotype, campaign symbol, or product label, the surface underfoot reinforces your message with every step.
Two Textile Formats – Choose TFT or TFR
TFT – Textile Tiles
- Interlocking or loose-lay, ideal for modular event zones
- Easy to remove, replace, or reconfigure
- Excellent for temporary flooring across multiple venues
TFR – Textile Rolls
- Seamless finish ideal for open-plan floor designs
- Best suited for luxury zones, receptions, and media backdrops
- Can be custom-cut for edge-to-edge perfection
Both are available in fire-rated, recyclable materials and offer smooth integration with surrounding temporary flooring systems. Whether you need zoning, acoustic dampening, or pure visual finesse—TFT and TFR give you full flexibility.
Key Benefits for Automotive & Exhibition Flooring
- Creates a high-end, tactile flooring experience
- Multiple styles to suit different event layouts
- Softens acoustics and enhances visual comfort
- Quick to install, reconfigure, and transport
- Compatible with branded flooring, custom exhibition stands, and vehicle display areas
- Supports print or laser-cut branding (e.g. brand name, logo, symbol, tag)
- Designed for repeated use across different event formats
Application Tips for TFF at Car Shows
Use TFT tiles to create visually distinct pathways, zone out display segments, or alternate colours to guide visitor flow. Choose TFR rolls when creating a unified, seamless premium area—ideal for product launches, press stages, or exclusive reveal spaces. For larger venues, mixing both formats helps you balance installation speed with visual consistency. And always make use of the custom branding features—logos, labels, or product identifiers—to leave a lasting impression.
Engineered Vinyl Composite (EVC) for Car Show Flooring
Modular Tile Flooring with High Visual Impact
Engineered Vinyl Composite (EVC) is purpose-built for premium car show flooring, where visual presentation, fast installation, and branding potential must work seamlessly together. The interlock tile format makes it ideal for auto exhibitions, product reveals, and motorsport displays, allowing teams to build, adjust, and reconfigure floor layouts in minutes—not hours.
Its construction handles heavy vehicle loads, maintains a professional look across multi-day shows, and offers a noise-dampening finish that enhances the visitor experience
Stylish Finishes That Support Brand Identity
Where EVC truly excels is in its design range. Available in pure colours, fleck patterns, wood designs, and stone effects, this flooring becomes part of your brand toolkit. Whether you’re setting up a high-gloss vehicle reveal or a lifestyle-themed auto zone, EVC helps you create a setting that complements your vehicles—not competes with them.
It also supports laser-cut customisation—add your logo, brand tag, or event imprint directly into the surface, ensuring your identity is part of the display, not just the backdrop.
Key Benefits:
- Modular interlocking tiles for fast installation and reusability
- Resilient, scratch-resistant surface for high footfall
- Supports heavy static loads—perfect for vehicle weight
- Visual choices: solid tones, woodgrain, stone, and flecked textures
- Compatible with custom graphics, logos, and laser-cut symbols
- Sustainable for repeat use across international event circuits
EVC Usage Guidance for Automotive Environments
EVC is a great match for organisers prioritising flexibility, brand impact, and design precision. Use neutral tones to enhance bold vehicle colours or divide spaces by pattern or finish. For branding, always use laser-cut samples to pre-check logo accuracy before a live install. This material is especially effective in high-profile, multi-brand indoor events where each floor must pull its weight—visually and functionall
Elastomer Cross-linked Polymer (ECP) – Rubber Flooring That Works Hard Behind the Scenes
Grip, Safety, and Comfort for Car Show Support Zones
Elastomer Cross-linked Polymer (ECP) flooring is your quiet powerhouse—designed for the high-pressure, high-activity spaces that support major automotive events. Whether you’re working in pit lanes, service corridors, loading docks, or technical zones, ECP delivers the traction, comfort, and endurance you need to keep everything running smoothly.
What makes it different? ECP is more than just rubber flooring—it can be configured as ergonomic, anti-fatigue, or shock-absorbing matting, helping reduce strain on staff who spend long hours on their feet. That’s why it’s trusted in high-performance environments where focus and physical support are critical.
Durable, Functional Features of ECP Rubber Tiles
- Outstanding non-slip traction, even in active and wet zones
- Functions as ergonomic flooring to reduce physical strain
- Available in anti-fatigue and shock-absorbing formats
- Resists wear from vehicle tyres, tools, and rolling equipment
- Ideal for crew areas, event support zones, and vehicle prep bays
- Supports full customisation using print and laser-cut logos, graphics, and symbols
ECP Guidance – Where and How to Use It
Deploy ECP rubber tiles in areas where performance and comfort must coexist. Use anti-fatigue zones at detailing stations, tech tables, and pit crew lanes to minimise staff fatigue. Apply printed markings to guide traffic, designate zones, or reinforce your event’s brand identity.
ECP won’t steal the spotlight, but it’s the flooring that keeps everything else standing strong—literally and figuratively.
Elastomer Cross-linked Polymer (ECP) – Rubber Flooring That Works Hard Behind the Scenes
Grip, Safety, and Comfort for Car Show Support Zones
Elastomer Cross-linked Polymer (ECP) flooring is your quiet powerhouse—designed for the high-pressure, high-activity spaces that support major automotive events. Whether you’re working in pit lanes, service corridors, loading docks, or technical zones, ECP delivers the traction, comfort, and endurance you need to keep everything running smoothly.
What makes it different? ECP is more than just rubber flooring—it can be configured as ergonomic, anti-fatigue, or shock-absorbing matting, helping reduce strain on staff who spend long hours on their feet. That’s why it’s trusted in high-performance environments where focus and physical support are critical.
Durable, Functional Features of ECP Rubber Tiles
- Outstanding non-slip traction, even in active and wet zones
- Functions as ergonomic flooring to reduce physical strain
- Available in anti-fatigue and shock-absorbing formats
- Resists wear from vehicle tyres, tools, and rolling equipment
- Ideal for crew areas, event support zones, and vehicle prep bays
- Supports full customisation using print and laser-cut logos, graphics, and symbols
ECP Guidance – Where and How to Use It
Deploy ECP rubber tiles in areas where performance and comfort must coexist. Use anti-fatigue zones at detailing stations, tech tables, and pit crew lanes to minimise staff fatigue. Apply printed markings to guide traffic, designate zones, or reinforce your event’s brand identity.
ECP won’t steal the spotlight, but it’s the flooring that keeps everything else standing strong—literally and figuratively.
Contact Us
Speak to one of us
FAQ
Welcome to our General FAQ section! Find quick answers to common questions below. Contact support for further assistance. Enjoy your experience with us!
What is automotive display flooring?
Traigo’s indoor motorsport and automotive event flooring offers a versatile and reliable solution for car showrooms, exhibitions, and racing events. Whether you need flooring for a luxury car showcase, a trade show, or a motorsport event, our products deliver the performance and aesthetics you need. Contact us today to explore our range of indoor motorsport and automotive event flooring solutions and request a sample.
Why is the right flooring important for a car showroom?
The right flooring enhances the overall presentation of the vehicles, creates a polished look for the showroom, and can impact customer perceptions. It should be durable to withstand the weight of vehicles, easy to maintain, and designed to complement the showroom’s aesthetics.
What types of flooring are best for car showrooms?
Yes, most automotive display flooring options are designed to be low-maintenance. Materials like epoxy or vinyl are resistant to stains, dirt, and grease, making them easy to clean and maintain. Routine sweeping and occasional mopping will keep the floors in good condition.
Is automotive display flooring easy to maintain?
The best flooring for car showrooms includes options like epoxy flooring, vinyl tiles, polished concrete, rubber tiles, and luxury vinyl planks. These materials are durable, easy to clean, and provide a sleek, modern look that highlights the vehicles on display.
How long does automotive display flooring last?
While some types of flooring, like interlocking vinyl tiles, may be DIY-friendly, most automotive display flooring (such as epoxy or polished concrete) is best installed by professionals. Professional installation ensures that the floor is laid correctly, is durable, and meets safety standards.
Can I install automotive display flooring myself?
The lifespan of automotive display flooring depends on the material used. For instance, epoxy floors can last 10-20 years with proper care, while vinyl or rubber floors may last 5-10 years. High-quality materials ensure long-term durability, even under the heavy weight of vehicles.
What is the cost of automotive display flooring?
The cost of automotive display flooring varies depending on the material, size of the area, and whether installation is included. On average, prices range from $2 to $7 per square foot for materials, with professional installation potentially adding additional costs.
Is automotive display flooring resistant to tire marks and stains?
Yes, many types of automotive display flooring, particularly epoxy and vinyl flooring, are resistant to tire marks and stains. These materials are specifically designed to endure the pressures and challenges of showcasing vehicles without showing wear and tear.
Can automotive display flooring be used in other environments, like garages or workshops?
Absolutely! Automotive display flooring is versatile and can be used in garages, workshops, or even home showrooms. It’s designed to be durable, making it ideal for any space where vehicles or heavy machinery are frequently moved.
What are the advantages of epoxy flooring for automotive displays?
Epoxy flooring offers several advantages, including durability, resistance to chemical spills, ease of cleaning, and a smooth, high-gloss finish that complements vehicles. It also provides excellent traction, which is important in a showroom environment where both vehicles and people move across the floor regularly.
How can I customize my automotive display flooring?
Many automotive display flooring options allow for customization in terms of color, texture, and design. You can choose from a wide range of colors, patterns, and even add logos or branding to your floor, making it a unique part of your showroom’s aesthetic.
Is automotive display flooring safe for customers and staff?
Yes, automotive display flooring is designed with safety in mind. Many options offer slip-resistant surfaces to prevent accidents. Additionally, these floors are smooth enough to avoid any tripping hazards but sturdy enough to handle the weight and movement of vehicles.
